Microwaves and CDs

Waves and Velocity

A wave is characterized by its wavelength (\(\lambda\)) and frequency (\(f\)). The wavelength refers to the distance between two consecutive crests or troughs of the wave, while the frequency represents the number of wave cycles passing a point per second.

Key Concepts

  1. Time to travel one wavelength: The time taken for a wave to travel one wavelength is the reciprocal of its frequency:

    \[ \text{Time} = \frac{1}{f} \]

  2. Speed of the wave: The speed of a wave is the distance it travels in a given time. For one wavelength, the distance is \( \lambda \), and the time is \( \frac{1}{f} \). Thus, the speed \( v \) is given by:

    \[ v = \frac{\lambda}{1/f} = \lambda f \]

    Therefore:

    \[ \text{Velocity} = \text{Wavelength} \times \text{Frequency} \]

  3. Variation of wave speed:

    • The speed of a wave depends on the medium through which it travels.
    • For example, the speed of light in a vacuum is constant at approximately \(299,792,458 \, \text{m/s}\).
    • However, the speed of light changes when traveling through different materials such as glass or water, as these media slow the wave down due to interactions with the material.

Explanation of the Formula:

  • The formula \(v = \lambda f\) shows that the wave's velocity is directly proportional to its wavelength and frequency. If either the wavelength or frequency increases, the speed of the wave increases accordingly, provided the wave is traveling through the same medium.
  • However, the medium itself plays a crucial role in determining wave speed. For example, sound waves travel faster in solids than in gases because the particles are more tightly packed, facilitating energy transfer.

This relationship is foundational in physics, especially in the study of sound, light, and electromagnetic waves.

Microwaves

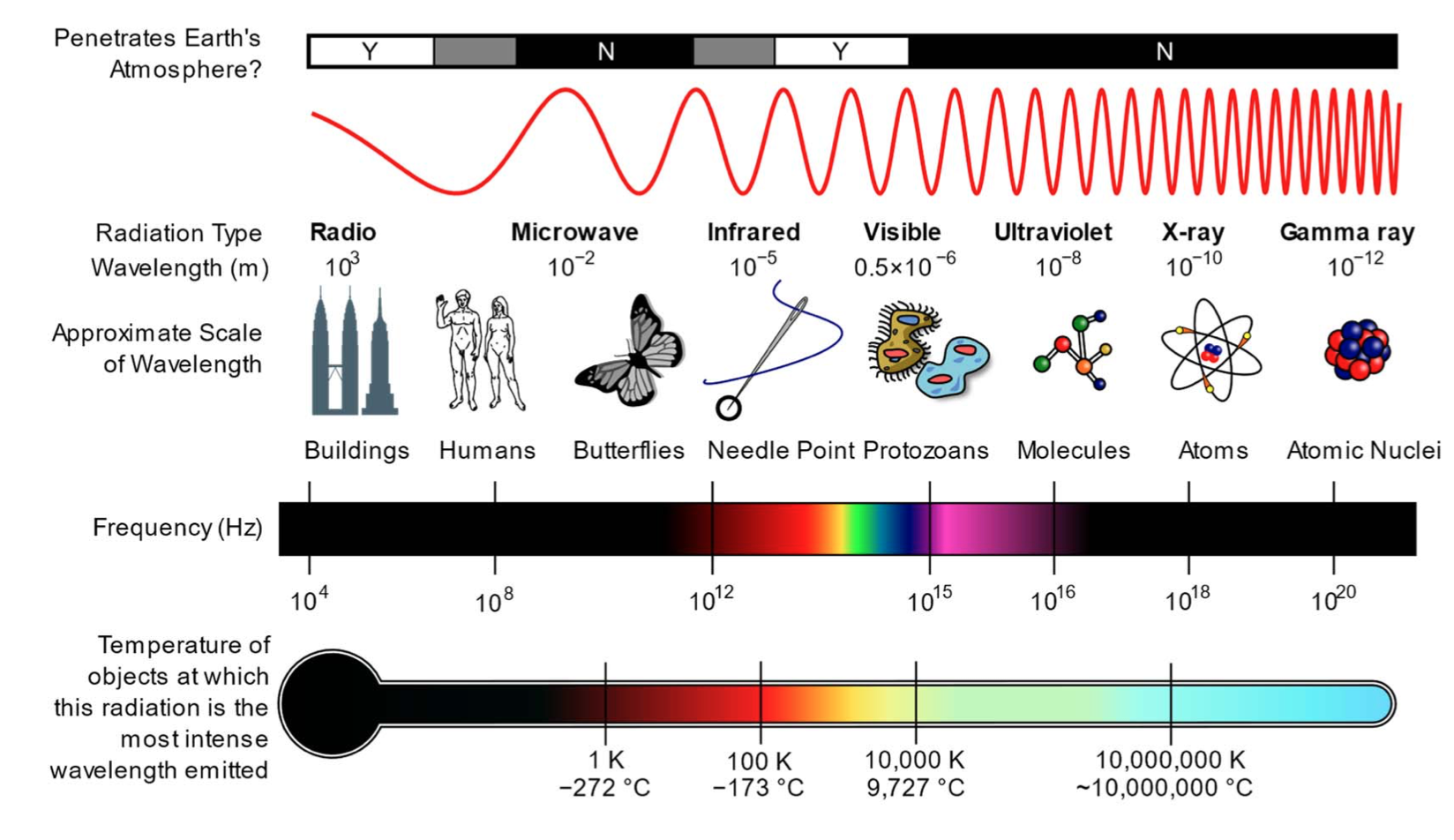

Microwaves are a form of electromagnetic radiation that lies between infrared and radio waves in the electromagnetic spectrum. They are characterized by their specific wavelength and frequency ranges, which have distinct physical properties and interactions with matter.

  • Wavelength Range: \(1 \, \text{mm} \, \text{to} \, 1 \, \text{m}\)
    • This range corresponds to electromagnetic waves with relatively small wavelengths, allowing them to interact strongly with objects of similar size, such as water molecules or metallic surfaces.
  • Frequency Range: \(300 \, \text{GHz} \, \text{to} \, 0.3 \, \text{GHz}\)
    • The high frequency of microwaves enables them to carry significant energy, which affects how they are absorbed and scattered by different materials.

Physics Behind Microwaves

  1. Interaction with Matter:
    • Microwaves interact with polar molecules, such as water, by inducing rotational motion. This process is critical in applications like microwave ovens, where the oscillating electric field causes water molecules to rotate and generate heat through friction.
    • Conductive materials, such as metals, reflect microwaves due to the oscillation of free electrons on the surface. This reflection property is crucial in radar technology.
  2. Wave Propagation:
    • Microwaves propagate in straight lines and can be guided using waveguides or coaxial cables, which rely on the wave's transverse electric and magnetic fields (TEM mode).
    • The relatively short wavelengths allow microwaves to diffract around small obstacles and penetrate certain materials, such as clouds or atmospheric gases, making them ideal for communication.
  3. Energy and Quantum Properties:
    • The energy of a microwave photon is given by \(E = h \nu\), where \(h\) is Planck's constant and \(\nu\) is the frequency. Although their photon energy is lower than visible light, it is sufficient to induce molecular rotations but not enough to break chemical bonds.
  4. Resonance Effects:
    • At specific frequencies, microwaves can resonate with molecular vibrations or rotations, leading to efficient energy absorption. For example, water molecules resonate strongly at certain microwave frequencies, enhancing heating efficiency in microwave ovens.

Microwaves and Water

Microwaves interact with water molecules due to the electromagnetic properties of both the wave and the molecule. This interaction is the foundation of many practical applications, such as microwave ovens.

Key Properties

  • Electromagnetic Waves:
    • Microwaves are a form of electromagnetic radiation with a frequency of 2.45 GHz and a corresponding wavelength of 12 cm commonly used in household microwave ovens.
  • Water Molecule as a Dipole:
    • The water molecule (\(H_2O\)) is a polar molecule, meaning it has a positive charge on one end (near the hydrogen atoms) and a negative charge on the other (near the oxygen atom). This polarity allows it to interact with the oscillating electric field of microwaves.

Physics of Interaction

  1. Electric Field Oscillation:
    • The electric field in the microwave oscillates and periodically reverses direction.
    • This oscillation causes the polar water molecules to align with the field, flipping back and forth with each cycle.
  2. Energy Absorption:
    • As water molecules flip back and forth, they generate friction and collisions with surrounding molecules.
    • This energy dissipation manifests as heat, leading to the warming of materials containing water.

Explanation of Heat Generation

  • The flipping of water molecules is driven by the resonant interaction with the microwave's frequency. This effect is particularly efficient at the commonly used frequency of 2.45 GHz.
  • The localized heating caused by this molecular agitation ensures that energy is evenly distributed in water-containing materials.

Cooking with Microwaves

Microwaves are effective at heating polar molecules, such as water, due to the interaction between the oscillating electric field of the waves and the dipole moment of the molecules. However, their effectiveness depends on the physical and chemical properties of the material being heated.

  1. Heating Polar Liquids (Water):
    • Microwaves are particularly efficient at heating water because it is a polar molecule. The oscillating electric field of the microwaves causes the water molecules to flip back and forth rapidly, generating heat through molecular friction. This process makes water-rich foods ideal for microwave heating.
  2. Limitations with Non-Polar Substances (Oil):
    • Non-polar liquids, such as oils, do not interact strongly with microwaves because they lack a significant dipole moment. Without the ability to align and rotate in response to the electric field, these substances absorb minimal energy and therefore do not heat effectively in a microwave.
  3. Inability to Heat Ice:
    • Microwaves are unable to heat ice effectively because the water molecules in ice are locked in a rigid lattice structure. This structure prevents the molecules from freely rotating in response to the microwave's electric field. As a result, ice does not absorb enough energy to heat efficiently.

How to Make Microwaves

Microwaves are generated using electronic circuits designed to produce high-frequency electromagnetic waves. The key components in microwave generation are resonators, oscillators, and power-producing circuits, similar to those found in radio transmitters.

Key Components

  1. Tank Circuit:
    • A tank circuit consists of an inductor and a capacitor connected in parallel.
    • The inductor and capacitor work together to store and exchange energy, creating oscillations at a specific frequency.
    • The frequency of oscillation is determined by the inductance (\(L\)) and capacitance (\(C\)) of the circuit: \(f = \frac{1}{2\pi\sqrt{LC}}\)
  2. Resonator:
    • A resonator amplifies the oscillations produced by the tank circuit.
    • In microwave generation, resonators help ensure stable and high-frequency oscillations necessary to produce microwaves.
  3. Oscillation:
    • To produce microwaves, the circuit must generate oscillations at very high frequencies, typically in the gigahertz range (e.g., 2.45 GHz for microwave ovens).
    • This requires components capable of switching and oscillating at extremely fast rates.
  4. Power Source:
    • A power supply is required to maintain the oscillations. Devices like magnetrons (used in microwave ovens) or klystrons are commonly employed to generate and amplify the electromagnetic waves.
    • These devices function similarly to radio transmitters, converting electrical energy into microwave radiation.

Magnetic Field Generation

  • The inductor in the circuit generates a magnetic field, which plays a crucial role in the oscillatory behavior of the circuit.
  • The alternating current flowing through the inductor produces an oscillating magnetic field, which interacts with the capacitor to maintain the energy exchange.

Magnetron: How It Works

The magnetron is a critical component for generating microwaves, combining electric and magnetic fields to produce high-frequency electromagnetic radiation. Below is an explanation based on the diagrams.

1. Tank Circuits and Electron Flow

  • 8 Tank Circuits Working Together:
    • The magnetron has 8 tank circuits arranged in a circular pattern around a central cathode. These circuits resonate at high frequencies to generate microwaves.
  • Filament and Electron Emission:
    • A filament at the center is charged at 4000V, which emits electrons via thermionic emission.
    • These electrons are attracted to the positively charged terminals (anodes) in the tank circuits.

2. Interplay Between Electric and Magnetic Fields

  • Magnetic Field (Out of the Page):
    • A magnetic field is applied perpendicular to the plane of the electrons' motion.
    • This causes the electrons to spiral instead of moving directly toward the positive terminals.
    • The spiraling motion allows electrons to transfer energy to the tank circuits, sustaining oscillations and amplifying the microwave production.

3. Challenges in Maintaining Oscillations

  • Energy Extraction and Replacement:
    • The generated microwaves are extracted from the tank circuits to perform tasks such as cooking.
    • This energy must be replenished by maintaining a consistent flow of electrons and charge within the tank circuits.
  • Charge Removal Interference:
    • If the electron flow removes too much charge from the tank circuits, it disrupts the oscillations, reducing microwave production efficiency.

4. Antenna and Microwave Transmission

  • Antenna Connection:
    • A ¼-wave antenna is connected to one of the tank circuits.
    • This antenna extracts the generated microwaves and directs them toward the application area (e.g., a microwave oven chamber).

Microwaves and Metal: The Concept

Microwaves interact with metal surfaces due to their ability to induce electric fields, which in turn create currents within the metal. This behavior explains why metal is used inside microwave ovens and why certain types of metal can cause problems.

Key Concepts

  1. Electric Fields and Currents in Metal:
    • When microwaves encounter a metal surface, they induce an electric field within the metal.
    • This electric field drives free electrons in the metal, creating an electric current.
    • If the metal has resistance, the induced current generates heat as energy is dissipated.
  2. Metal Reflects Microwaves:
    • Metal acts as a mirror for microwaves. The free electrons in the metal respond to the electric field of the waves, creating currents that re-emit the microwaves, effectively reflecting them.
    • This reflection keeps microwaves contained within the oven, concentrating their energy on heating the food.
  3. Why Metal Inside the Microwave Oven Doesn’t Heat:
    • The metal used inside a microwave oven is thick and highly conductive, resulting in very low resistance.
    • Low resistance means the induced currents do not produce significant heat, ensuring the metal remains cool.
  4. Thin Metal and Sparking:
    • Thin metal, such as aluminum foil, has higher resistance and irregular surfaces. The electric field becomes concentrated in small areas, leading to sparking or arcing.
    • This occurs because the high current density in these small regions can ionize the air, producing sparks.

Sparks: How They Occur and Their Effects

Sparks, or arcing, occur when the electric field in a region becomes large enough to ionize air, creating a conductive path for current. This is especially common with certain metals in a microwave due to the following factors:

1. Electric Field Concentration

  • Near sharp points or edges on metallic objects, the electric field becomes highly concentrated.
  • The high electric field intensity can ionize the surrounding air, leading to an arc discharge or spark.

2. Thin Metal and High Resistance

  • Thin metal layers like the gold rim on a glass plate have a higher electrical resistance compared to thicker metals.
  • When exposed to microwaves, the induced currents cause the thin metal to heat up rapidly, potentially melting the material and damaging the object.

3. Potential Hazards

  • Combustion Risk: If a spark occurs near a combustible material, it can ignite a fire.
  • Microwave Damage: Sparks can damage the interior components of the microwave, such as the waveguide or magnetron.

Geometrical Optics Lenses

Convex Lens and Light Focusing

  • A convex lens focuses parallel rays of light to a single point called the focal point.
  • This focusing effect is due to the curvature of the lens, which bends (or refracts) the light rays toward the optical axis.

Increase in Energy Density

  • By concentrating the light rays at a single point, the energy density at the focal point increases. This makes convex lenses useful in applications where concentrated light is required, such as in magnifying glasses or lasers.

Limitations

  • There is a physical limit to how small the focal spot can be, which is determined by the wavelength of the light. This is known as the diffraction limit, where light behaves more like a wave and less like a ray, preventing perfect focusing.

Magnifying Glass: How It Works

A magnifying glass uses a convex lens to magnify an object's appearance by creating a larger, virtual image when the object is positioned between the lens and its focal point.

Key Concepts

  1. Convex Lens Function:
    • A convex lens bends light rays inward, causing them to converge.
    • When an object is placed closer to the lens than its focal point, the lens produces a virtual, upright, and magnified image.
  2. Image Formation:
    • The light rays coming from the object are refracted by the convex lens.
    • These rays diverge on the other side of the lens, and the brain interprets them as originating from a much larger object behind the lens.
  3. Magnified Image:
    • The virtual image appears larger than the object, making details easier to observe.
    • This property is widely used in tools like reading glasses, microscopes, and magnifiers.

Applications:

  • Used for enlarging small objects for better visibility.
  • Essential in focusing light energy in applications like starting a fire by converging sunlight.

Flat Mirror vs. Parabolic Mirror

Flat Mirror

  • A flat mirror reflects light according to the law of reflection, where the angle of incidence is equal to the angle of reflection.
  • Light rays hitting a flat mirror maintain their divergence or parallel nature after reflection, preserving the spatial relationships of the object.

Parabolic Mirror

  • A parabolic mirror has a curved, parabolic shape designed to focus light.
  • It reflects incoming parallel light rays (e.g., from a distant source) to a single point called the focus.
  • The parabolic mirror effectively acts like a lens, concentrating energy (light, sound, or radiation) at its focal point.

Key Differences

  • Flat Mirror: Simply redirects light without changing its convergence or divergence.
  • Parabolic Mirror: Redirects and focuses light, increasing energy density at the focal point, which is useful in applications like telescopes, satellite dishes, and solar concentrators.

Polarizers

Polarization of Light

  • Light is an electromagnetic wave that oscillates in multiple planes. It can have components that oscillate vertically (up and down) or horizontally (in and out) relative to its direction of travel.

Function of a Polarizer

  • A polarizer allows light waves oscillating in a specific direction to pass through while blocking waves oscillating in other directions.
  • For instance:
    • A vertical polarizer only allows the vertical component of the light wave to pass.
    • A horizontal polarizer only transmits the horizontal component.

How It Works

  1. Unpolarized Light Input:
    • The incoming light contains waves oscillating in all directions perpendicular to its propagation.
  2. Selective Transmission:
    • When light passes through the polarizer, only the component aligned with the polarizer's orientation is transmitted.
    • The other components are absorbed or reflected.
  3. Resulting Polarized Light:
    • The output light after passing through the polarizer oscillates in a single direction, matching the polarizer's alignment.

Applications

  • Polarizers are used in sunglasses to reduce glare, in photography to enhance contrast, and in optics to analyze stress patterns in materials.

Liquid Crystals

Liquid crystals are materials that exhibit properties between those of a conventional liquid and a solid crystal. Their structure and behavior depend on temperature and the resulting molecular arrangement.

Phases of Liquid Crystals

  1. Isotropic Phase:
    • Molecules are randomly oriented and distributed, similar to a liquid.
    • There is no positional order and no orientational order.
  2. Nematic Phase (Lower Temperature):
    • Molecules maintain random positions but exhibit orientational order, aligning along a preferred direction (the director).
    • There is no positional order, but molecules point in roughly the same direction.
  3. Smectic Phase (Even Lower Temperature):
    • Molecules organize into layered structures, achieving quasi-one-dimensional positional order and orientational order.
    • Layers form a more structured arrangement compared to the nematic phase.

Behavior with Temperature

  • As temperature decreases, molecular organization transitions from isotropic (disordered) to nematic (aligned) and finally to smectic (layered and aligned).

Applications

  • Liquid crystals are widely used in liquid crystal displays (LCDs) due to their ability to manipulate light when subjected to electric fields.

Crossed Polarizers

How Crossed Polarizers Work

  • Crossed Polarizers are two polarizers placed at right angles to each other.
  • The first polarizer allows light vibrating in a specific direction to pass through, while the second blocks light not aligned with its orientation.
  • When crossed, these polarizers effectively block all light unless a birefringent material (e.g., liquid crystals) is introduced in between, altering the polarization.

Applications

  1. Visualizing Liquid Crystal Defects: Polarizers are used to identify imperfections in liquid crystal structures.
  2. Phase Transitions: Crossed polarizers help observe phase changes in materials, such as isotropic to nematic transitions in liquid crystals.
  3. Sunglasses: Polarized sunglasses reduce glare by filtering out horizontally polarized light reflected off surfaces.

Liquid Crystal Display (LCD)

Structure

  1. Polarizers:
    • Two crossed polarizers sandwich the liquid crystal layer.
    • Light must pass through the liquid crystals to alter its polarization.
  2. Scratched Glass Plates:
    • The surfaces of the plates align the liquid crystals in a specific direction.
  3. Liquid Crystals:
    • In their natural state, liquid crystals rotate the polarization of light, allowing it to pass through the second polarizer.
  4. Electric Field:
    • Applying an electric field reorients the liquid crystals, stopping them from twisting the light's polarization.

Operation

  • Without Electric Field:
    • Liquid crystals rotate the light's polarization, allowing it to pass through both polarizers. The display appears bright.
  • With Electric Field:
    • Liquid crystals align with the field and no longer rotate the light's polarization, blocking it at the second polarizer. The display appears dark.

Interference

Interference is a phenomenon that occurs when two or more waves overlap, resulting in the combination of their amplitudes. The resulting wave can be stronger or weaker depending on the phase relationship of the overlapping waves.

Constructive Interference

  • Occurs when the crests of one wave align with the crests of another wave, and the troughs align with the troughs.
  • The amplitudes of the waves add together, producing a wave with greater overall amplitude.
  • Example: Bright spots in light interference patterns.

Destructive Interference

  • Occurs when the crest of one wave aligns with the trough of another wave.
  • The amplitudes of the waves cancel each other out, resulting in no wave or a wave with reduced amplitude.
  • Example: Dark spots in light interference patterns.

Digital Representation of Sound

How Sound is Digitized

  1. Sampling the Waveform:
    • The height (amplitude) of the sound wave is measured at different points along its path.
    • These sampled values are assigned numerical values to represent the wave digitally.
  2. Sampling Rate:
    • If measurements (samples) are taken frequently, the digital reproduction of the waveform is more accurate, resulting in better sound quality.
    • If measurements are taken infrequently, the reproduction is less accurate, leading to poor sound quality.
  3. Quantization:
    • Each sampled height is converted into binary numbers (a sequence of 1's and 0's).
    • For example, the binary number 1011 represents a height of: \(1 \times 8 + 0 \times 4 + 1 \times 2 + 1 \times 1 = 11\)

Storage in CDs

  • CDs use 16 bits to represent each sampled height. This means each sample can be represented by a binary string with 16 digits.
  • The entire waveform is stored as a sequence of binary values, such as: 11110000100110100001100111100

Visualization

  • The original waveform is smooth and continuous.
  • The digitized version approximates the original wave using discrete steps, represented by binary numbers.

How a CD Works

Physical Structure of a CD

  1. Spiral Track:
    • The data on a CD is written in a continuous spiral that measures 5.378 km in length.
    • The spiral starts at the center of the CD and moves outward.
  2. Pits and Lands:
    • Data is encoded as pits and lands on the spiral track.
    • Dimensions of pits:
      • Height: 110 nm
      • Width: 500 nm
      • Length: Between 833 nm and 3560 nm
  3. Layers of the CD:
    • A CD consists of:
      • Plastic layer (1.2 mm): Provides the base structure.
      • Metal layer: Reflects the laser light.
      • Lacquer layer and label: Protect and display information.

How Data is Read

  1. Laser and Reflection:
    • A laser is focused on the metal layer of the CD.
    • As the laser encounters pits and lands, the reflected light undergoes constructive or destructive interference.
  2. Binary Data:
    • The interference pattern is detected by a sensor.
    • Constructive interference is interpreted as a "1," and destructive interference is interpreted as a "0."
    • These binary values correspond to the digital data stored on the CD.
  3. Reading Direction:
    • The CD is read from the inside to the outside of the spiral.

CD Player Optics

The optical system in a CD player is designed to read data from a compact disc by focusing and interpreting the reflected laser light.

Components and Their Functions

  1. Laser:
    • Generates a coherent beam of light that is used to read the pits and lands on the compact disc's surface.
  2. Diffraction Grating:
    • Splits the laser beam into multiple beams to ensure accurate tracking of the spiral track on the CD.
    • Helps detect deviations in the laser's position.
  3. Beam Splitter:
    • Directs the laser beam toward the CD while also allowing the reflected light to return to the detector.
    • Ensures efficient light management in the optical system.
  4. Quarter-Wave Plate:
    • Modifies the polarization of the laser light to differentiate between the incoming and reflected beams.
    • Converts linear polarization into circular polarization, aiding in interference and signal detection.
  5. Lenses:
    • Focus the laser beam onto the surface of the CD to accurately illuminate the data track.
    • Ensure that the beam is small enough to resolve individual pits and lands.
  6. Compact Disc (CD):
    • Reflects the focused laser light, with variations in the surface (pits and lands) causing constructive or destructive interference.
  7. Detector:
    • Captures the reflected light and interprets the interference patterns as binary data (1’s and 0’s).
    • These binary signals are then decoded into usable digital information.

Key Operations

  • Focusing and Tracking:
    • The system continuously adjusts the laser's position to stay aligned with the spiral track on the CD.
    • This ensures that the data is read accurately even if the CD has minor imperfections or misalignments.
  • Binary Data Interpretation:
    • The variations in reflected light intensity are translated into binary signals, which represent the encoded data on the CD.

Difference Between CD, DVD, and Blu-ray

CDs, DVDs, and Blu-ray discs are optical storage media that differ in their storage capacity, laser technology, and physical specifications.

1. Storage Capacity

  • CD (Compact Disc):
    • Storage: ~700 MB
    • Designed for audio and basic data storage.
  • DVD (Digital Versatile Disc):
    • Storage: 4.7 GB (single layer) or 8.5 GB (dual layer)
    • Designed for video, higher-quality audio, and larger data storage.
  • Blu-ray:
    • Storage: 25 GB (single layer) or 50 GB (dual layer)
    • Intended for high-definition video and large data storage.

2. Laser Technology

  • CD:
    • Uses an infrared laser with a wavelength of 780 nm.
    • Larger pits and lands, requiring less precision.
  • DVD:
    • Uses a red laser with a wavelength of 650 nm.
    • Smaller pits and lands allow more data to be stored.
  • Blu-ray:
    • Uses a blue-violet laser with a wavelength of 405 nm.
    • Even smaller pits and lands, enabling significantly higher data density.

3. Data Layer Structure

  • CD:
    • Single layer for data storage.
  • DVD:
    • Can have multiple layers (up to 2) to increase storage.
  • Blu-ray:
    • Multiple layers (up to 2 in consumer versions, more for specialized discs).

4. Data Compression and Quality

  • CD:
    • Limited to uncompressed audio or basic data formats.
  • DVD:
    • Supports compressed video and audio (e.g., MPEG-2 for video).
  • Blu-ray:
    • Supports advanced video and audio compression (e.g., H.264, Dolby TrueHD).

5. Applications

  • CD:
    • Primarily for music, small software distributions, and personal data.
  • DVD:
    • Used for standard-definition movies, software, and larger data files.
  • Blu-ray:
    • Focused on high-definition and ultra-high-definition video, as well as massive data storage.

Review

  • Microwaves have wavelengths between 1 millimeter to 1 meter.

  • Microwaves have longer wavelengths than visible light.


  • Microwaves have much longer wavelengths (approximately 12 cm for a typical microwave oven) compared to the size of the holes in the metal screen (typically less than 1 mm). Because the wavelength of microwaves is significantly larger than the holes, the screen acts as a barrier, preventing the microwaves from passing through by reflecting or absorbing them. Visible light, on the other hand, has much shorter wavelengths (400–700 nm), which are much smaller than the holes in the screen. This allows visible light to pass through, so you can see inside the microwave oven.

  • Microwaves and visible light are both part of the electromagnetic spectrum, and all electromagnetic waves travel at the same speed in a vacuum: the speed of light. Their speeds are identical regardless of their wavelength or frequency when traveling through a vacuum.
  • When a charged particle like an electron enters a magnetic field at a perpendicular angle to the field lines, it experiences a force (Lorentz force) that is perpendicular to both its velocity and the magnetic field. This force causes the particle to move in a circular path, a behavior known as cyclotron motion.
  • When light passes from one medium (like air) into another medium (like plastic), its speed and wavelength change, but its frequency remains constant. This is because frequency is determined by the source of the light and does not change across different media.

  • DVDs use a red laser with a wavelength of about 650 nm, while CDs use an infrared laser with a wavelength of about 780 nm. The shorter wavelength of the DVD laser allows for:

    • Smaller pits (the features that store data).
    • Tighter track spacing (the distance between adjacent data tracks).

    This increases the data density of a DVD compared to a CD, allowing it to store more information.

  • Optical fibers work based on the principle of total internal reflection, which occurs when light traveling in a medium (e.g., glass or plastic core of the fiber) encounters an interface with a less dense medium (e.g., cladding) at an angle greater than the critical angle. When this happens, the light is completely reflected back into the core, rather than refracted out, allowing it to travel long distances within the fiber.

  • Optical communications, such as those using fiber optics, most often use light in the infrared region of the spectrum, typically in the wavelength range of 850 nm to 1550 nm.
  • Light inside a glass fiber is guided by the principle of total internal reflection. When light attempts to exit the glass fiber at an angle less than the critical angle (relative to the boundary between the glass core and the surrounding cladding), it is completely reflected back into the core. This ensures the light remains confined within the fiber and follows its path.
  • Data on a CD is stored as tiny pits and lands (flat areas) on the aluminum layer. These pits and lands represent the binary data (0s and 1s). A laser reads this data by focusing light onto the pits and interpreting the reflected light. The resolution of the laser (how small a spot it can focus on) is limited by the wavelength of the light used. The laser in a CD player typically operates at a wavelength of 780 nm (infrared). This wavelength sets the minimum size of the pits and the spacing between data tracks due to the diffraction limit. Since the pits and tracks cannot be smaller than the diffraction limit, the amount of data that can be packed onto a CD is limited.
  • A laser diode is used in CD and DVD players to generate the focused beam of light required to read the data stored on the discs. The laser light is monochromatic (single wavelength) and coherent, allowing precise reading of the tiny pits and lands on the disc's surface.
  • When laser light travels from air into a focusing lens (typically made of glass or plastic), it slows down because the refractive index (\(n\)) of the lens material is greater than that of air. When the light exits the lens and returns to air, it speeds up to its original speed because the refractive index decreases back to \(1\).
  • Total internal reflection occurs when light travels from a medium with a higher refractive index (like glass) to a medium with a lower refractive index (like air) at an angle greater than the critical angle. For regular store windows, light usually enters or exits at angles less than the critical angle, so total internal reflection does not occur in noticeable amounts.
  • Total internal reflection occurs when light attempts to move from a medium with a higher refractive index (where light travels slower) to a medium with a lower refractive index (where light travels faster) at an angle greater than the critical angle. In everyday life, glass has a higher refractive index than air, so light refracts or reflects normally when passing between the two. For total internal reflection to be prominent, the light must move from a slower medium to a faster medium.
