Module 4: Dictionaries¶

ADT Dictionary¶

Dictionary

An ADT consisting of a collection of items, each of which contains:

a key
some data (the "value")

and is called a key-value pair (KVP). Keys can be compared and are (typically) unique.

Operations:

search(k) (also called lookup(k))
insert(k, v)
delete(k) (also called remove(k))
Optional: successor, join, is-empty, size, etc.

Elementary Realizations¶

Common assumptions:

Dictionary has \(n\) KVPs
Each KVP uses constant space (if not, the “value” could be a pointer)
Keys can be compared in constant time

Unordered array or linked list

search: \(\Theta(n)\)
insert: \(\Theta(1)\) (except array occasionally needs to resize)
delete: \(\Theta(n)\) (need to search)

Ordered array

search: \(\Theta(\log n)\) (via binary search)
insert: \(\Theta(n)\) → find order to insert in
delete: \(\Theta(n)\) → need to shuffle after deletion

The binary-search only applied to a sorted array

**binary-search(A, n, k)**
Input: Sorted array A of size n, k: key

ℓ <- 0, r <- n - 1
while (ℓ <= r)
    m <- ⌊(ℓ + r) / 2⌋
    if (A[m] equals k) then return "found at A[m]"
    else if (A[m] < k) then ℓ <- m + 1
    else r <- m - 1
return "not found, but would be between A[ℓ-1] and A[ℓ]"

Binary Search Trees¶

BST as realization of ADT Dictionary¶

Structure

Binary tree: all nodes have two (possibly empty) subtrees
Every node stores a KVP
Empty subtrees usually not shown

Ordering

Every key \(k\) in \(T\).left is less than the root key.
Every key \(k\) in \(T\).right is greater than the root key.

BST::search(k) Start at root, compare \(k\) to current node’s key. Stop if found or subtree is empty, else recurse at subtree.

BST::insert(k, v) Search for \(k\), then insert \((k, v)\) as new node

BST

No structure property
Unique keys
Left child < right child

Heap

Structure property
Can have duplicates
No orders of left child vs. right child

Deletion in a BST¶

First search for the node \(x\) that contains the key.
If \(x\) is a leaf (both subtrees are empty), delete it.
If \(x\) has one non-empty subtree, move child up
Else, swap key at \(x\) with key at successor node and then delete that node.
- (Successor: next-smallest among all keys in the dictionary.)

Height of a BST¶

BST::search, BST::insert, BST::delete all have cost \(\Theta(h)\), where \(h\) = height of the tree = max. path length from root to leaf

If \(n\) items are inserted one-at-a-time, how big is \(h\)?

Worst-case: \(n − 1 = \Theta(n)\) (when the tree forms a linked list)
Best-case: \(\Theta(\log n)\). (when the tree is balanced)
- Any binary tree with \(n\) nodes has height \(h \geq \log(n+1)-1\) (Layer \(i\) has at most \(2^i\) nodes. So \(n\leq \sum^h_{i=0}2^i = 2^{h+1}-1)\).

AVL Trees¶

An AVL Tree is a BST with an additional height-balance property at every node:

The heights of the left and right subtree differ by at most \(1\).

Rephrase:

If node \(v\) has left subtree \(L\) and right subtree \(R\), then

\[ \text{balance}(v) := \text{height}(R) - \text{height}(L) \]

must be in \(\{-1, 0, 1\}\)

balance(\(v\)) = -1 means \(v\) is left-heavy
balance(\(v\)) = +1 means \(v\) is right-heavy

Need to store at each node \(v\) the height of the subtree rooted at it

Alternative: store balance (instead of height) at each node.

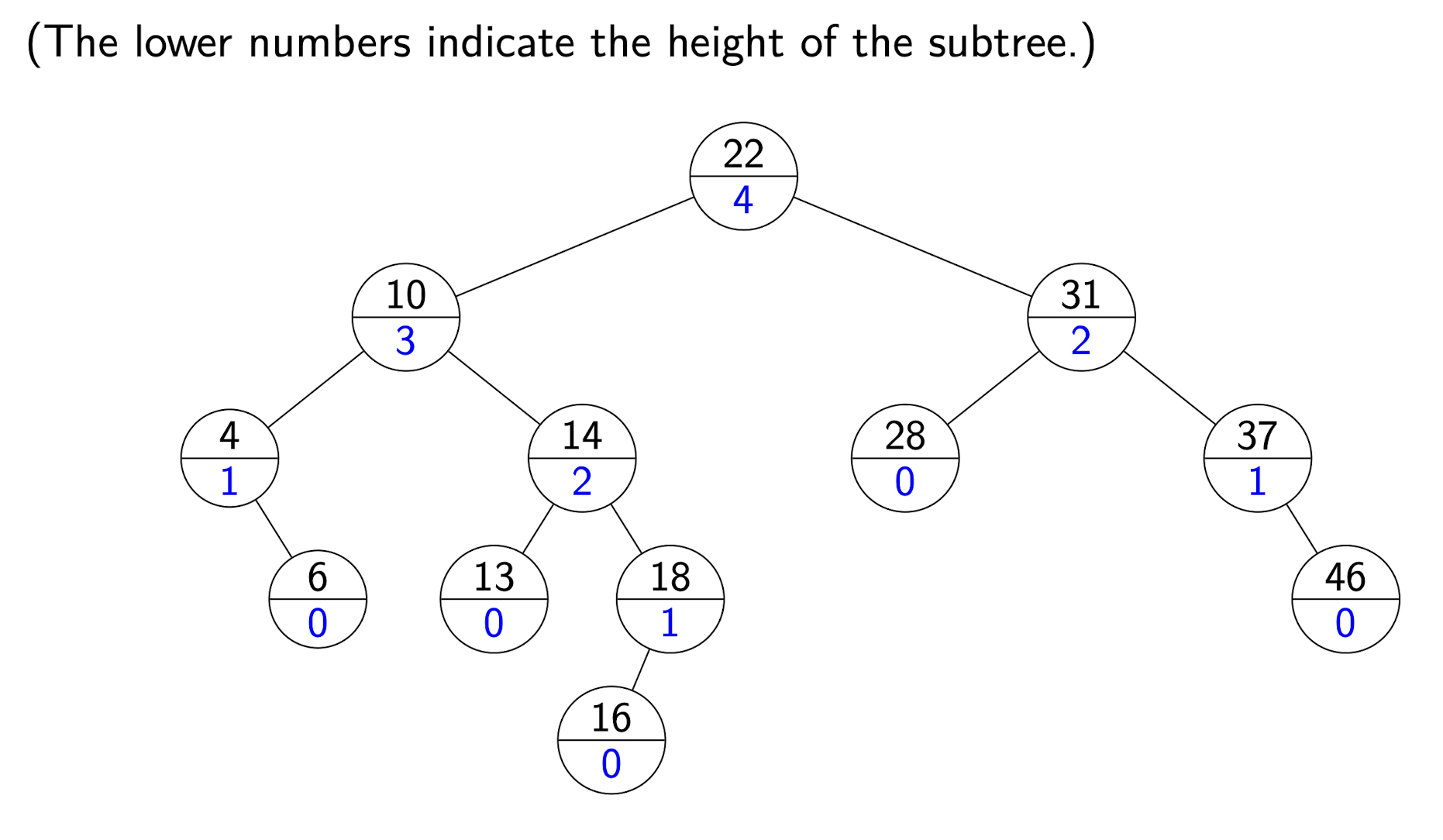

AVL Tree Example¶

Indicate the MAX height of the left & right subtree

ALV is \(-1 \leq (|\text{Right}| - |\text{Left}|) \leq 1\)

Height of an AVL tree¶

Theorem

An AVL tree on \(n\) nodes has \(\Theta(\log n)\) height.

search, BST::insert, BST::delete all cost \(\Theta(\log n)\) in the worst case!

Insertion in AVL Trees¶

AVL insertion¶

To perform AVL::insert(k,v):

First, insert (k,v) with the usual BST insertion.
We assume that this returns the new leaf \(z\) where the key was stored.
Then, move up the tree from \(z\).
Update height (easy to do in constant time):

**setHeightFromSubtrees(u)**

u.height ← 1 + max{u.left.height, u.right.height}

If the height difference becomes \(\pm 2\) at node \(z\), then \(z\) is unbalanced. Must re-structure the tree to rebalance.

Restructuring a BST: Rotations¶

Right Rotation¶

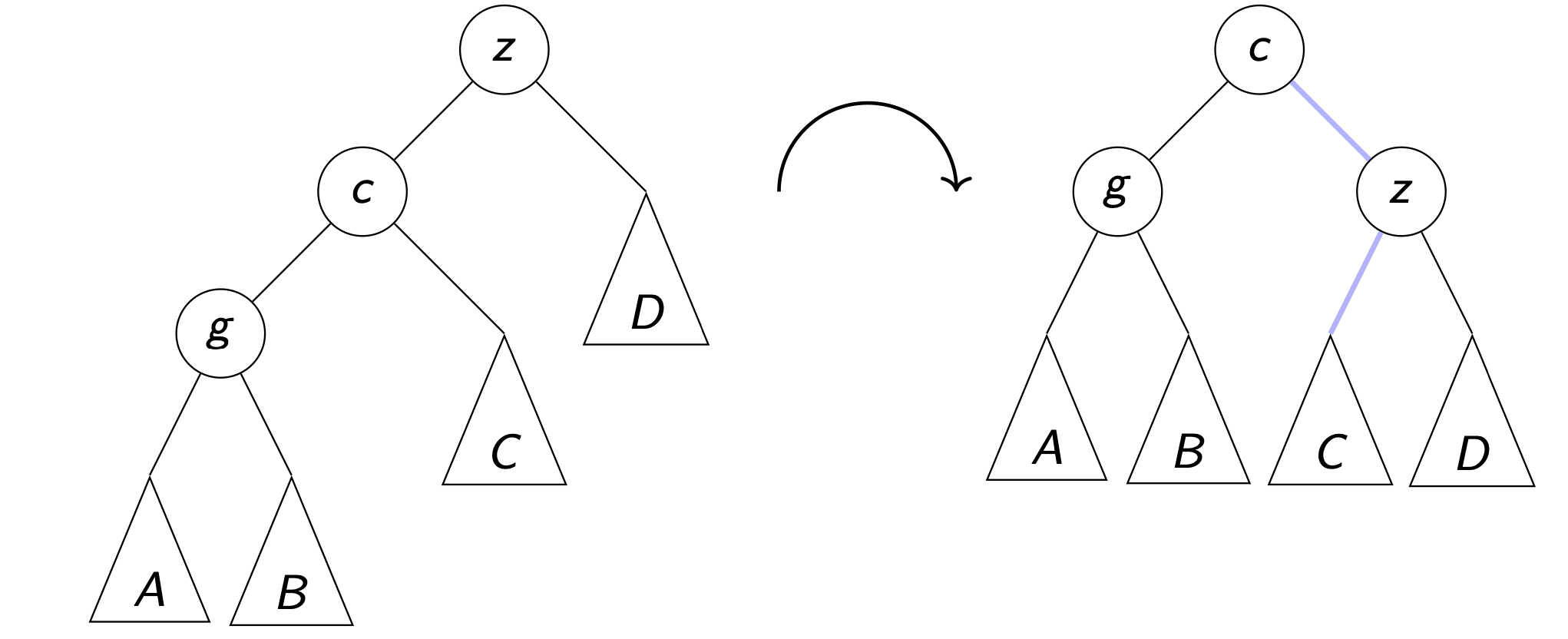

This is a right rotation on node \(z\):

**rotate-right(z)**

c ← z.left, z.left ←p c.right, c.right ←p z
setHeightFromSubtrees(z), setHeightFromSubtrees(c)
return c // returns new root of subtree

(Notation ←p means ‘also change parent-reference of right-hand-side’)

Actually, the p should be above the left arrow!

Note

❗

Concept Explanation from ChatGPT:

Pseudocode Breakdown

c ← z.left
- This line assigns node c as the left child of node z. In the context of your tree, before the rotation, c is positioned directly to the left of z.
z.left ← c.right
- Here, the right subtree of c (labelled as C in your diagram) is moved to become the left child of z. This effectively shifts subtree C under node z. It is necessary because when c moves up to take the place of z, Ccannot remain under c without disturbing the binary search tree property.
c.right ← z
- This line makes z the right child of c, completing the primary movement of the rotation. c moves up to where z was, and z moves down to the right side of c. This alters the levels of c and z, with c becoming the parent node in place of z.

Left Rotation¶

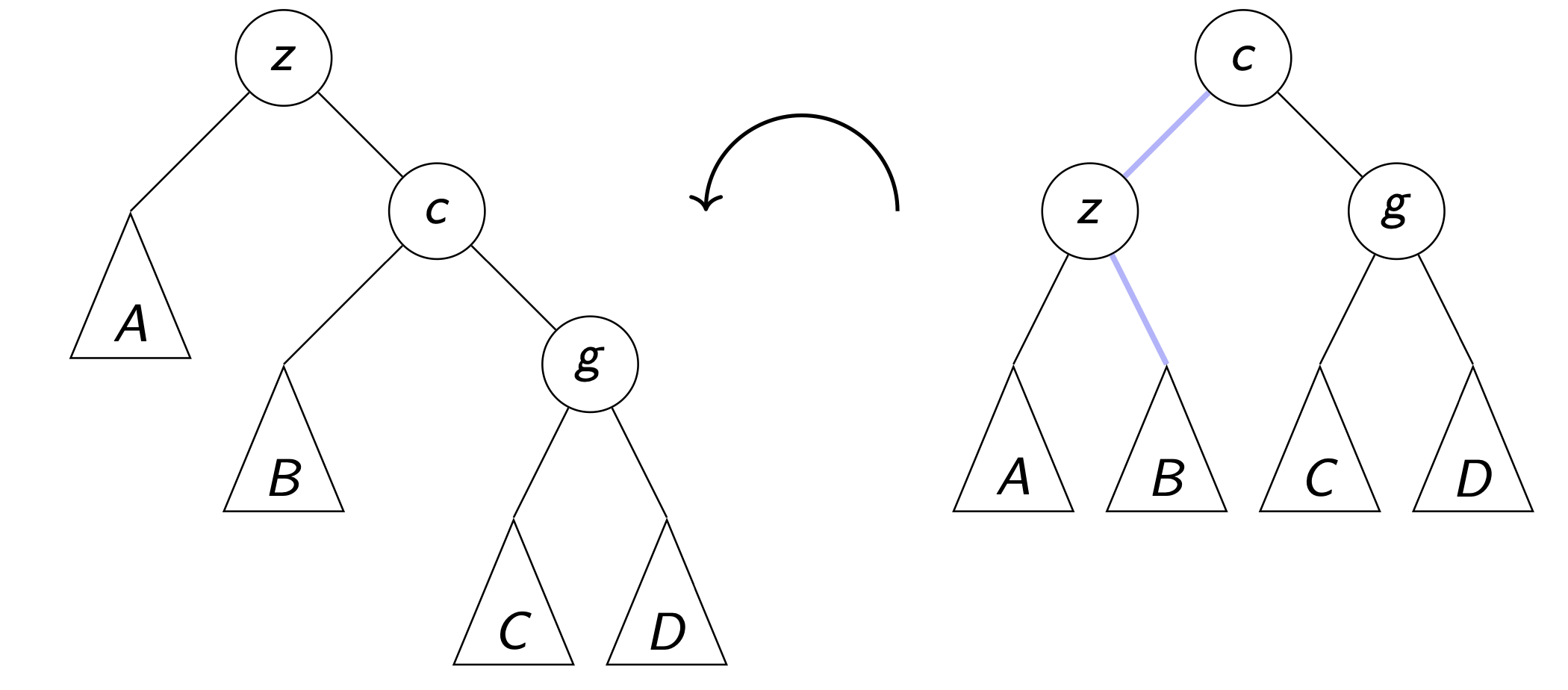

Symmetrically, this is a left rotation on node \(z\):

Again, only two links need to be changed and two heights updated. Useful to fix right-right imbalance.

**rotate-left(z)**

c ← z.right, z.right ←p c.left, c.left ←p z
setHeightFromSubtrees(z), setHeightFromSubtrees(c)
return c // returns new root of subtree

Double Right Rotation¶

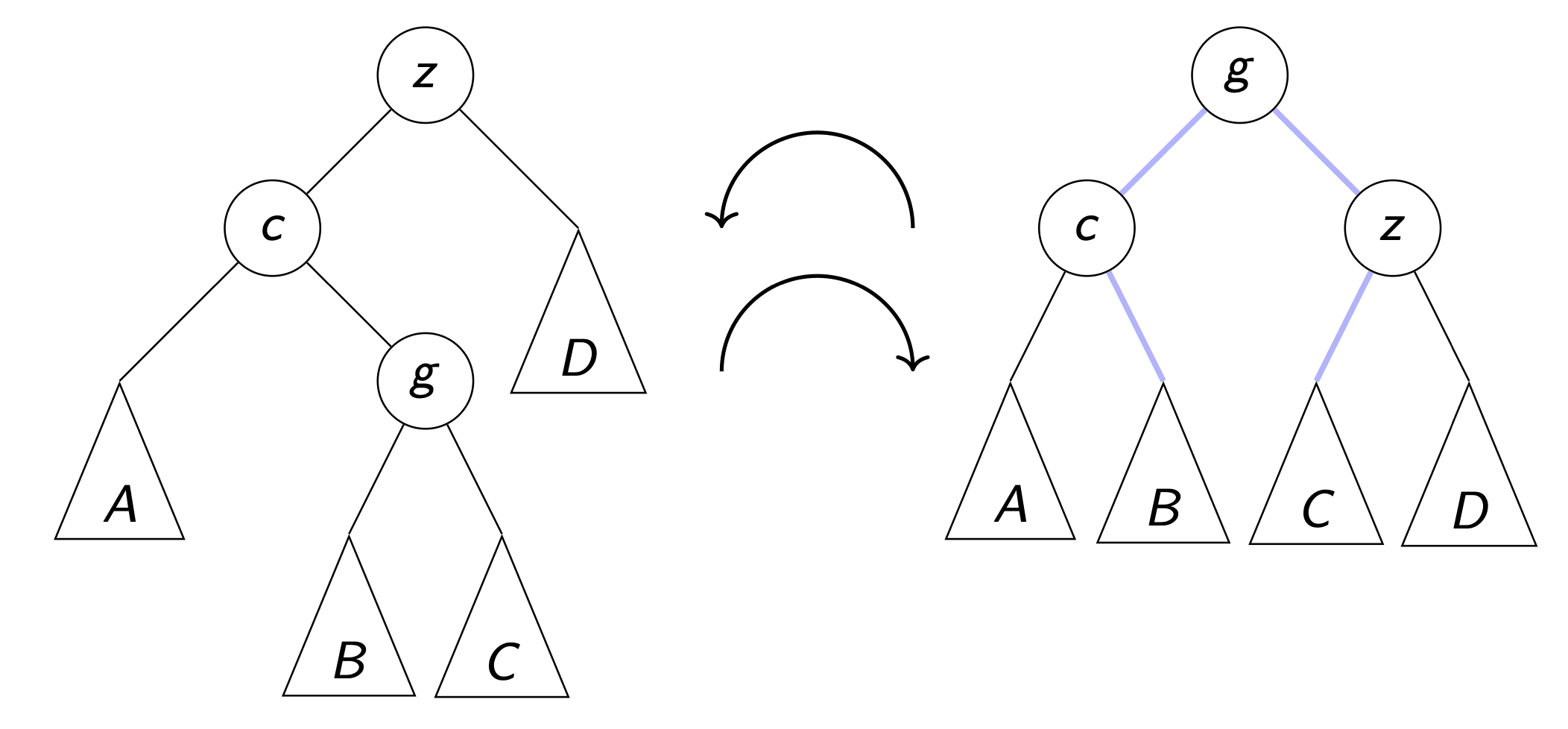

This is a double right rotation on node \(z\):

First, a left rotation at \(c\).

Second, a right rotation at \(z\).

Double Left Rotation¶

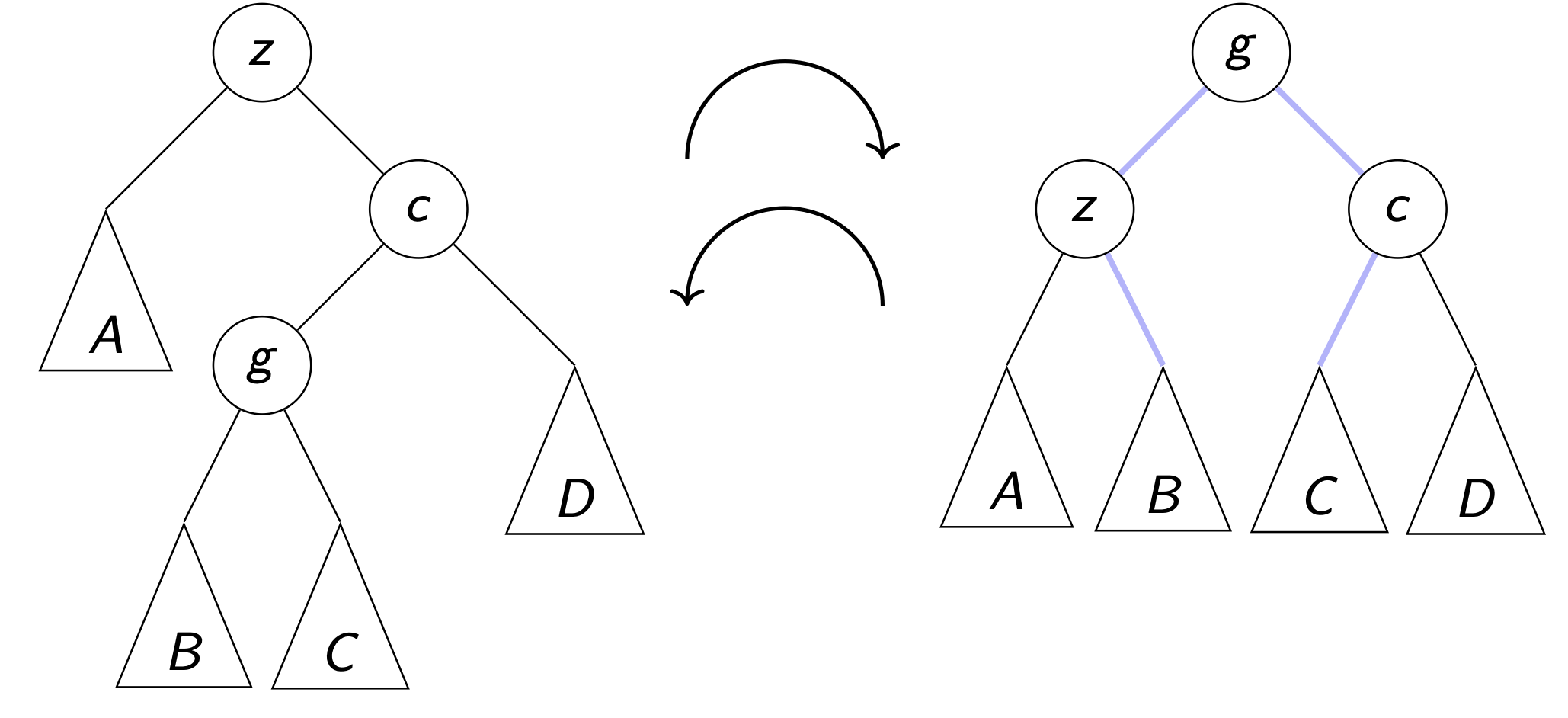

Symmetrically, there is a double left rotation on node \(z\):

First, a right rotation at \(c\).

Second, a left rotation at \(z\).

AVL insertion revisited¶

Imbalance at \(z\): do (single or double) rotation

Choose \(c\) as child where subtree has bigger height.

**AVL::insert(k , v )**

z ← BST::insert(k , v ) // leaf where k is now stored
while (z is not NULL)
    if (|z.left.height − z.right.height| > 1) then
        Let c be taller child of z
        Let g be taller child of c (so grandchild of z)

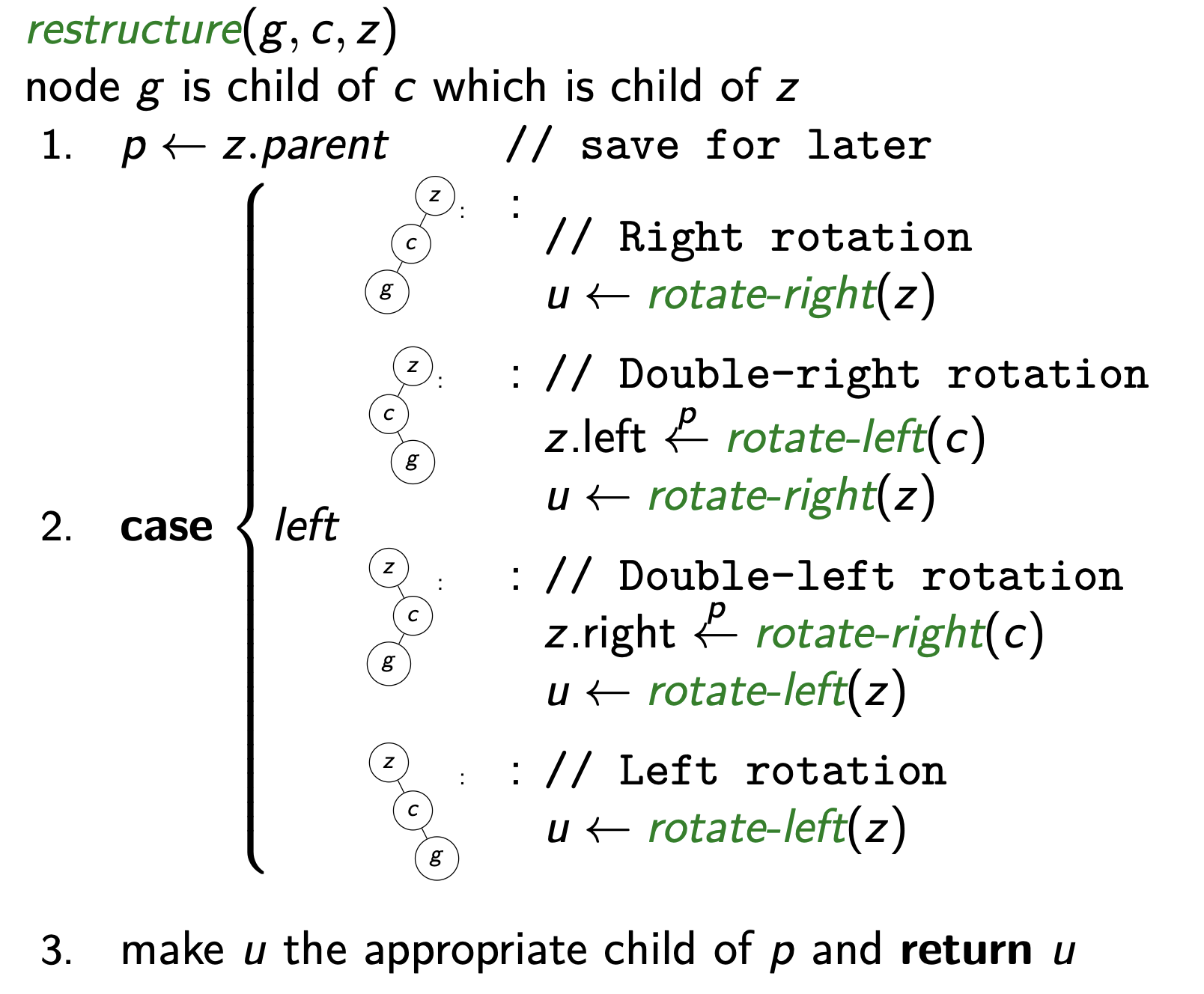

        restructure(g , c , z ) // see later
        break // can argue that we are done
    setHeightFromSubtrees(z )
    z ← z.parent

Can argue: For insertion one rotation restores all heights of subtrees.

No further imbalances, can stop checking.

Fixing a slightly-unbalanced AVL tree¶

Rule:

The middle key of \(g, c, z\) becomes the new root.

Deletion in AVL Trees¶

AVL Deletion¶

Remove the key \(k\) with BST::delete.

Find node where structural change happened. (This is not necessarily near the node that had \(k\).)

Go back up to root, update heights, and rotate if needed.

**AVL::delete(k )**

z ← BST::delete(k)
// Assume z is the parent of the BST node that was removed
while (z is not NULL)
    if (|z.left.height − z.right.height| > 1) then
        Let c be taller child of z
        Let g be taller child of c (break ties to avoid double rotation)
        z ← restructure(g,c,z)
  // Always continue up the path
    setHeightFromSubtrees(z )
    z ← z.parent

Important:

Ties must be broken to avoid double rotation (same height for both subtrees).

Note

❗

Concept Explanation from ChatGPT:

When you have a choice of nodes to rotate (usually when the child nodes of the critical node have equal heights or balance factors), you should choose the one that allows for a single rotation, thereby "breaking ties.”

AVL Tree Summary¶

search: Just like in BSTs, costs \(\Theta(height)\)

insert: BST::insert, then check & update along path to new leaf

total cost \(\Theta(height)\)
restructure will be called at most once.

delete: BST::delete, then check & update along path to deleted node

total cost \(\Theta(height)\)
restructure may be called \(\Theta(height)\) times.

Worst-case cost for all operations is \(\Theta(height) = \Theta(\log n)\).

In practice, the constant is quite large.
